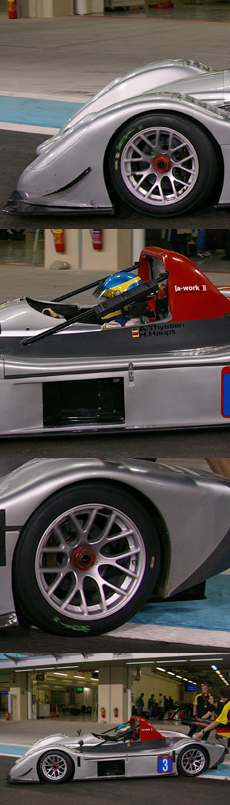

Radical SR8LM for sale
Contact us now for further details and to discuss a sale…
Chassis:
Two-seater, powder-coated carbon steel space-frame chassis with integral safety cell
Aluminium honeycomb structures complying with FIA Production Sports Car Crash Test
Removable forward facing steel chassis stays
77 litre foam-filled aluminium fuel tank mounted behind the driver within the safety cell
Fully adjustable pedal box
Engine:
Powertec RPA 72° 2.6 litre V8 engine 380bhp with integral 4 pump oil scavenge system
2 oil pressure pumps and rotating vane water pump
Eight butterfly fuel induction system with composite ram-air box
Integral bell-housing and engine oil tank
Lightweight steel flywheel and twin plate clutch
Stainless steel manifold and exhaust system with twin silencer
Transmission & Gear system:
Powertec P-Tec six-speed sequential transaxle, interchangeable gear sets with torque-biasing limited-slip differential for seamless diff lock-up.
Powertec transmission oil pump and radiator.
RPE paddle shift and auto-blipper, flat up shifts and clutch-less down-shift
Aero & bodywork:
Carbon composite bi-plane rear wing with aluminium end plates.
Diveplanes
High-downforce composite rear diffuser
Six-piece lightweight fibre-glass bodywork with self-coloured gel coat finish
High down-force composite front diffuser with removable, high nose, low-drag front section.
Wheel arch louvres front and rear
Rear view mirrors
Quick-release front cockpit fairing
Composite side pods with air management system and radiator inlet
Composite side-skirts
Removable composite tail section with integral engine induction intake & ventilation grilles.
Suspension & dampers:
Fully adjustable Nik suspension system front and rear.
Unequal length top and bottom wishbones, fabricated uprights, forged steel centre lock hubs and interchangeable anti-roll links.
3 way adjustable, titanium-bodied, low-friction, coil-over dampers.
Brake system;
Radical four-pot calipers front and rear
280mm dia. × 25mm, 48 vane floating front and rear discs.
Central brake cooling duct connected to carbon composite brake cooling shrouds.
Wheels & Tyres;
Radical centre lock, cast aluminium wheels - 8" × 15" dia. front & 10.5" × 16" dia. rears
Dunlop purpose-designed slick tyres.
Other Equipment:
Rear brake and fog lights
Moulded composite, high-sided, drivers and passenger seats with adjustable mounts.
Carbon-composite dash surround
Quick release steering wheel with collapsible column
Radical display unit incorporating an LED analogue rev counter, gear indicator, shift light, four LCD displays of engine parameters/speed and warning lights
Dash-mounted brake bias adjuster |
